truck mixer

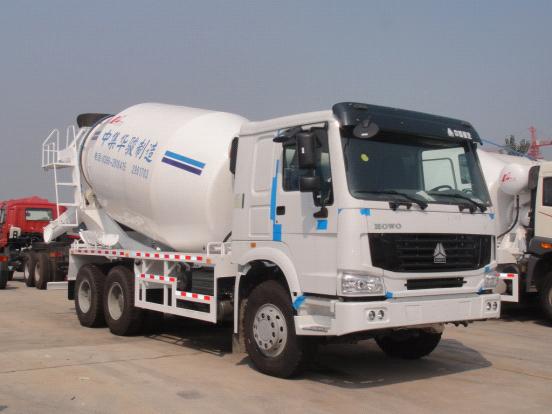

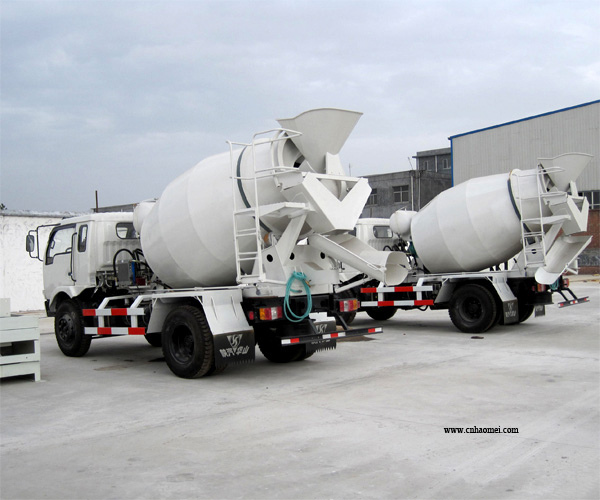

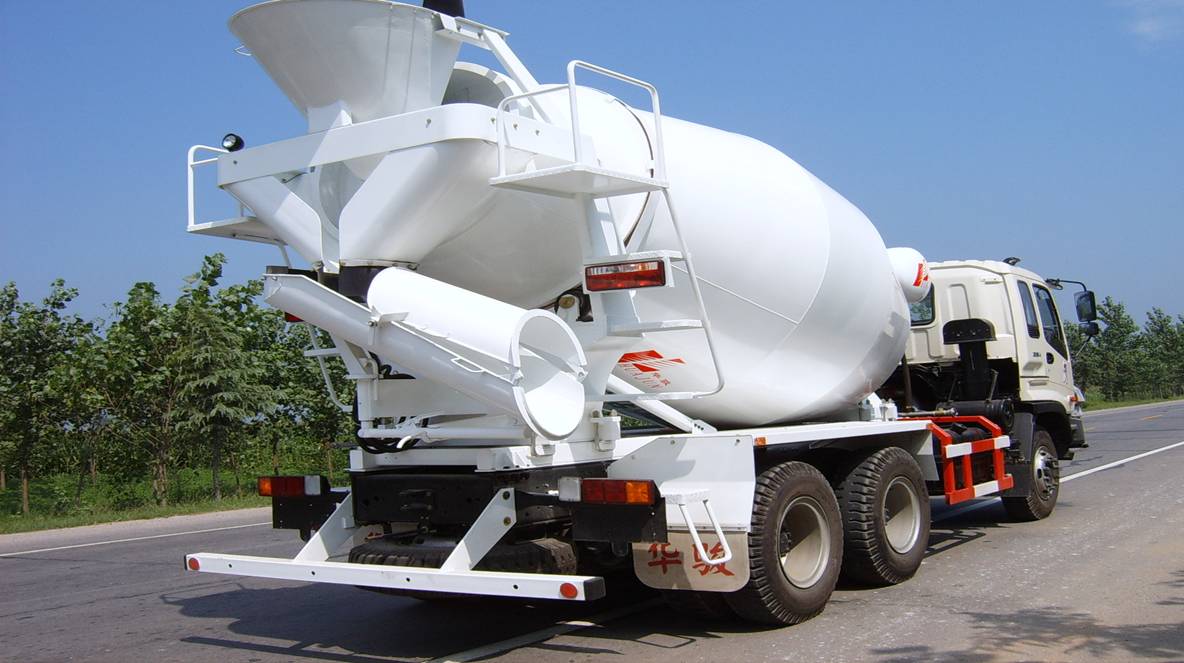

HAOMEI serial concrete mixer trucks are HAOMEI's independently developed products on the basis of absorbing domestic and foreign advanced techniques. The product mainly applies to long-distance mixing transport of concrete mixture,effectively delay concrete coagulation,avoids concrete stratification and eduction,and ensures construction quality and speed. HAOMEI serial concrete mixer trucks include many models such as 8m³,9m³,10m³,12m³,14m³ and can choose any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part according to customers’ choices. The stirring vat driving system adopts original imported America and Germany closed circuit hydraulic system pump,motor,and reductor, and supporting hydraulic parts such as oil tank, radiator,filter,hose connector all adopt imported parts in order to ensure hydraulic system with long using life. Stirring vat body and helical vanes all adopt B520JJ single-purpose special fine crystal particle hard wearing steel plate from Shanghai Baogang while the easy wearing positions having much contact with concrete such as feeding and discharge bucket chutes,etc. are also stuck with hard wearing steel plate, which correspondingly give the product rather long using life. Multiple mixing arms are set in stirring vat while square and round holes are scientifically arranged in mixing vanes, which both realize real three-dimensional mixing work of concrete with discharge surplus nearly achieving zero and with concrete eduction greatly avoided. Mobile discharge chute can be locked at 4 different positions to achieve discharge operation in different directions. The whole truck adopts blasting and baking finish to produce an elegant and pleasing outline with such advantages as smooth and reliable slewing, speedy discharge,low surplus rate,handy operation,and long using life.
Main technical parameters
Name |
Unit |
Parameter |
||||||
8m3 | 9m3 | 10m3 | 12m3 | 14m3 | ||||
The machine parameters | Model | ZZ5252G- JBN3246F | ZZ5252G -JBN3846F | ZZ5310G-JBN3261 | ZZ5311G-JBN3261 | ZZ5312G-JBN3261 | ||
Total length |
mm | 8555 | 9300 | 9800 | 10150 | 10150 | ||
Total length |
mm | 2490 | 2500 | 2495 | 2496 | 2496 | ||
Total height |
mm | 3800 | 3780 | 3830 | 3900 | 3960 | ||
Chassis model |
STEYER KING ZZ1252N- 3246F |
STEYER KING ZZ1252N- 3846F |
HOWO ZZ1317N- 3261 |
HOWO
ZZ1317N- 3261 |
HOWO
ZZ1317N- 3261 |
|||
Overall weight | kg | 25000 | 25000 | 31000 | 31000 | 31000 | ||
Curb weight |
kg | 12600 | 13000 | 15650 | 16370 | 16700 | ||
Wheel base 1 |
mm | 3225 | 3800 | 3200 | 3200 | 3200 | ||
Wheel base 2 |
mm | 1350 | 1350 | 1350 | 1350 | 1350 | ||
Front tread |
mm | 1939 | 1939 | 2022 | 2022 | 2022 | ||
Rear tread |
mm | 1800 | 1800 | 1830 | 1830 | 1830 | ||
Tyre model | 12.00-20 | 12.00-20 | 12.00-20 | 12.00-20 | 12.00-20 | |||
Front overhang | mm | 1560 | 1560 | 1500 | 1500 | 1500 | ||
Rear overhang | mm | 2460 | 2450 | 1997 | 2075 | 2075 | ||
Min. turning radius |
m | 7.6 | 9.8 | 23 | 23 | 23 | ||
Max. speed |
Km/h | 75 | 72 | 90 | 90 | 50 | ||
Steering device (GERMANY ) |
ZF8098 | ZF8098 | ZF8098 | ZF8098 | ZF8098 | |||
Oil consumption per 100 kilos (under limited conditions) | L | 32 | 34 | 38 | 38 | 38 | ||
Engine | Engine model |
WD615.69 | WD615.69 | WD615.69 | WD615.69 | WD615.69 | ||
Engine configuration | Water cooling 6-cylinder direct injection diesel engine |
Water cooling 6-cylinder direct injection diesel engine |
Water cooling 6-cylinder direct injection diesel engine |
Water cooling 6-cylinder direct injection diesel engine |
Water cooling 6-cylinder direct injection diesel engine |
|||
Cylinder number and arrangement |
Linear 6-cylinder |
Linear 6-cylinder |
Linear& 6-cylinder |
Linear
6-cylinder |
Linear 6-cylinder |
|||
Engine max. output power |
kw | 228 (2200 r/min) |
247 (2200 r/min) |
247 (2000 r/min) |
247 (2000 r/min) |
247 (2000 r/min) |
||
Engine max. output torque |
N.M | 1250 (1600 r/min) |
1250 (1600 r/min) |
1250 (1600 r/min) |
1250 (1600 r/min) |
1250 (1600 r/min) |
||
PTO output |
N.M | 600 (2200 r/min) |
600 (2200 r/min) |
600 (2200 r/min) |
600 (2200 r/min) |
600 (2200 r/min) |
||
Working device | Stirring vat geometric cubage |
M3 | 12.8 | 14.7 | 17.05 | 19.65 | 20.1 | |
Mixing cubage | M3 | 8 | 9 | 10 | 12 | 14 | ||
Stirring vat leaning angle | % | 15 | 13.5 | 12 | 11 | 12 | ||
Stirring vat rotating speed |
r/min | 0-14 | 0-14 | 0-14 | 0-14 | 0-14 | ||
Feeding speed |
M3/min | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ||
Discharge speed | M3/min | ≥3 | ≥3 | ≥3 | ≥3 | ≥3 | ||
Land-slide degree | m | 100~230 | 100~230 | 100~230 | 100~230 | 100~230 | ||
Surplus rate |
% | <1 | <1 | <1 | <1 | <1 | ||
Water tank volume |
L | 400 | 400 | 400 | 400 | 400 |
Company profile
Haomei machinery equipment CO., LTD. is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile truck mixer , concrete batching plant,mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world. Seeking for long-term relationship and mutual benefit is our unstoppable goal.
Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management. We focus greatly on our products' quality and with such quality our products have been receiving admiration by clients from over 30 provinces in China and royal clients from overseas.
We catagorize files for clients by computer so that we can view clients' feedback and comments in time, tracking services and long-term warranty. In this way our clients will feel assured and comfortable in using our equipments.
Our main product: JZC/JZM250, 350, 500,750 movable truck mixer s, PLD800, 1200, 1600, 1800, 2400, 3200, 4800 batchers, LSY series cement screws, HZS25, 35, 50, 60, 75, 90, 120, 150, 180, 240 concrete batching plant, YHZS25, 60, 75 mobile concrete batching plant, HBT series concrete pumps, truck-mounted boom pumps and truck mixers with different capacities. We are confident to attract our clients from all over the world with our best quality concrete batching machines in China!.
